dhtmlxColorPicker integration. A data field with pop-up colorPicker.

Please note, to use colorpicker item you must include several dhtmlxColorPicker related files:

1.If you use dhtmlxColorPicker standalone you need to include 3 files:

<script src="../codebase/dhtmlxcolorpicker.js"></script>
<link rel="stylesheet" type="text/css" href="../codebase/dhtmlxcolorpicker.css">
<script src="../codebase/ext/dhtmlxform_item_dhxcolorpicker.js"></script>

2.If you use dhtmlxColorPicker as a part of 'dhtmlxSuite' package you need to include 2 files:

<link rel="STYLESHEET" type="text/css" href="../codebase/dhtmlx.css">
<script src="../codebase/dhtmlx.js" type="text/javascript"></script>

Attributes

className - (string) the user-defined css class for item
imagePath - (url) the relative path to colorPicker's images (dhtmlxColorPicker/codebase/imgs/)
inputHeight - (integer or auto) sets input height. The default value is auto
inputLeft - (integer) the left absolute offset of input. Just position:“absolute” makes sense of the attribute
inputTop - (integer) the top absolute offset of input. Just position:“absolute” makes sense of the attribute
inputWidth - (integer or auto) sets input width. The default value is auto
label - (string) the text label of item
labelAlign - (left, right or center) the alignment of label within the defined width
labelHeight - (integer or auto) the height of label. The default value is auto
labelLeft - (integer) the left absolute offset of label. Just position:“absolute” makes sense of the attribute
labelTop - (integer) the top absolute offset of label. Just position:“absolute” makes sense of the attribute
labelWidth - (integer or auto) the width of label. The default value is auto
name - (string) the identification name. Used for referring to item
offsetLeft - (integer) sets the left relative offset of item (both input and label)
offsetTop - (integer) sets the top relative offset of item (both input and label)
position - (label-left, label-right, label-top or absolute) defines the position of label relative to input
readonly -(boolean:true/false or 0/1) specifies whether item's value can be changed by typing in the input (you are still able to set the value by clicking on the colorpicker icon). Can be used to exclude the possibility of entering incorrect values
validate - (predefined rule or custom function) sets the validation rule. See details in the chapter 'Validation'
value - (string) the initial value of item

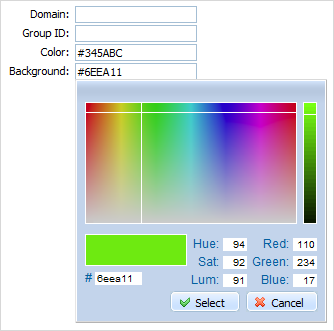

var formData = [
		{type: "settings", labelAlign:'right', labelWidth: 70},
		{type: 'input', name: 'Domain', id:'Domain', label: 'Domain:'},
		{type: 'input', name: 'GroupID', id:'GroupID', label: 'Group ID:'},
		{type: 'colorpicker', name: 'Color', label: 'Color:', value:"#345ABC", imagePath: "../dhtmlxColorPicker/codebase/imgs/"},
		{type: 'colorpicker', name: 'Background', label: 'Background:', value:"#6EEA11", imagePath: "../dhtmlxColorPicker/codebase/imgs/"}
];
